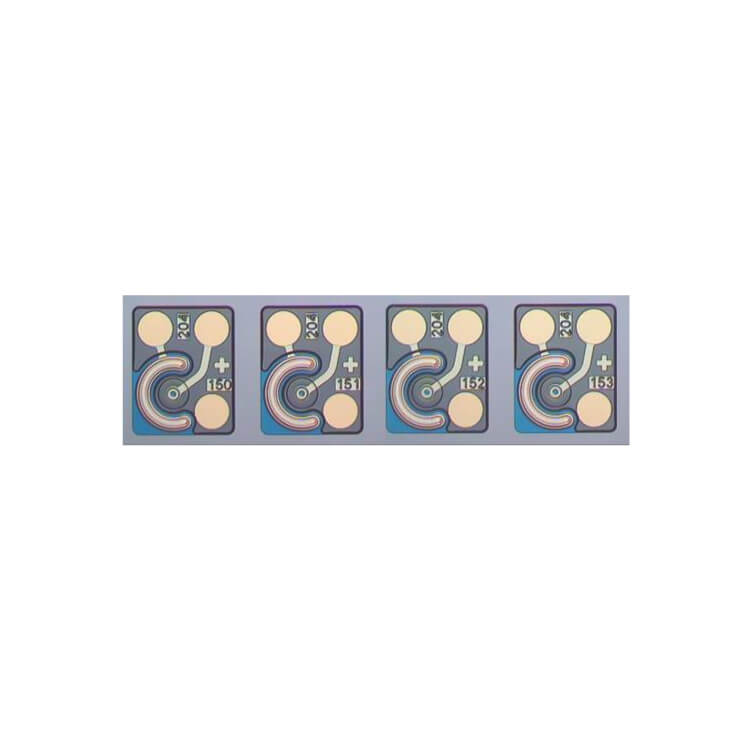

850nm 10G VCSEL Dual Top Contact Array
850nm multimode emission
Low threshold and operation current
High reliability
Narrow spectral width
Data rates from DC to 10 Gb/s
Telcordia GR468 compliant
Available as single chip, 4 and 12 channel array
RoHS compliant
Our high-speed 850nm multimode VCSEL chips are designed to meet stringent specifications for high-speed data communications. This high performance, high reliability device is engineered with low electrical parasitics for data rates up to 10Gb/s. The VCSEL operates in multiple transverse and single longitudinal modes, and emits a circular symmetric beam with low divergence that can be efficiently coupled into 50/125 and 62.5/125µm multimode fibers. The chip design allows flexible linear array combinations in common cathode configuration with a pitch of 250 microns between individual channels
Parallel fiber optical communication links
AOC and Transceivers
