New Product!
Miniature Band Pass Filter 2.4 GHz for Wireless Applications
Johanson Technology has released part number 2450BP08C0100001T, a cutting-edge miniature ceramic SMD Bandpass Filter designed for a diverse range of small form-factor wireless applications and devices. This innovative filter is the perfect fit for applications such as WiFi, IoT, LoRa tags, BLE, Zigbee, wearables, and various battery-operated RF modules, providing exceptional performance in compact designs. It is also designed to work well with wireless chipset vendor reference designs, making it an ideal choice for a wide range of wireless applications.
This LTCC (Low Temperature Cofired Ceramic) Bandpass Filter delivers both very low insertion loss and high rejection, guaranteeing optimal performance for 2.4GHz ISM band applications. Offered in a compact EIA 0403 package (1.1 x 0.9mm), it maintains excellent performance while conserving valuable space in your device's design.
AEC-Q200 Option:
For automotive applications requiring rigorous standards, Johanson Technology offers part number 2450BP08C0100002T, an automotive AEC-Q200 compliant version of the filter, providing the same exceptional performance with added automotive-grade reliability.
Available for sampling, and mass production quantities!
- Download our comprehensive datasheets:
- 2450BP08C0100001T
- 2450BP08C0100002T (AEC-Q200 version)
- Get Design Help for this Part
![](/vancheerfile/Images/2024/5/20240516162121566.gif)
Designer Engineer’s Tool
Johanson’s Antenna Selection Guide
Select the right antenna for your design using Johanson’s comprehensive step-by-step selection guide. It’s interactive, easy to use and will assist you in finding the ideal Antenna part number tailored specifically to your product's needs. Click on the part numbers to be taken to the product information page containing links to the datasheet,
S-Parameters and more.
- Access Selection Guide – https://www.johansontechnology.com/downloads/johanson-technology-chip-antenna-selection-guide.pdf
![](/vancheerfile/Images/2024/5/20240516162453712.jpg)

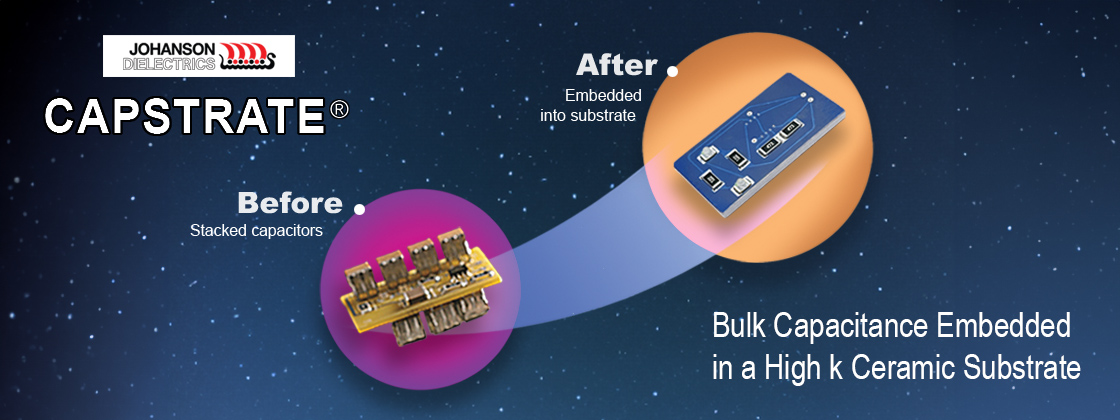

New! CapStrate® Design Guide
CapStrate® - Bulk Capacitance Embedded in a High k Ceramic Substrates
“Small Space” Power Electronic Design Solutions
CapStrates® are ceramic substrates with capacitors embedded in the substrate. The top and bottom layers of this substrate can be designed with custom metallization patterns for microelectronic circuits. This technology works wonders for microelectronic subassembly designs that have volumetric challenges. The ceramic substrate can also operate at temperatures higher than the typical FR4 substrate. From there, engineers can deploy a CapStrate® subassembly in environments where a commercial FR4 substrates cannot handle.
A key feature of our CapStrate® lies in their utilization of high-k dielectrics for increased bulk capacitance. This enables the substitution of discrete capacitors with bulk capacitance integrated into ceramic substrates. While standard voltage ratings typically range from 100 to 1000V, our team welcomes discussions regarding specialized voltage requirements.
Make this comprehensive design guide accessible to your customers! Equipped with this guide, design engineers can:
- Tailored solutions to accommodate intricate board layouts, optimizing space utilization ("Space Saver")
- Seamlessly transition from quick-turn prototypes to high-volume production
- Achieve reduced component count and heightened reliability
- Avail themselves of end-to-end support encompassing design, manufacturing, and assembly services
- Download CapStrate® Design Guide: CapStrate® Design Guide
- Visit Johanson Dielectrics website: https://www.johansondielectrics.com/
- For Unique Design Requirements: Contact Johanson Engineers
![](/vancheerfile/Images/2024/5/20240516162540524.png)
We’re Exhibiting! The BATTERY Show North America 2024
Experience the Most Comprehensive Advanced Battery Event
Johanson Technology will be exhibiting at The BATTERY Show & EV Tech Expo
Huntington Place Detroit, MI USA
October 7th– 10th
Visit us at BOOTH 4341
Visit The Battery Show for show details.
